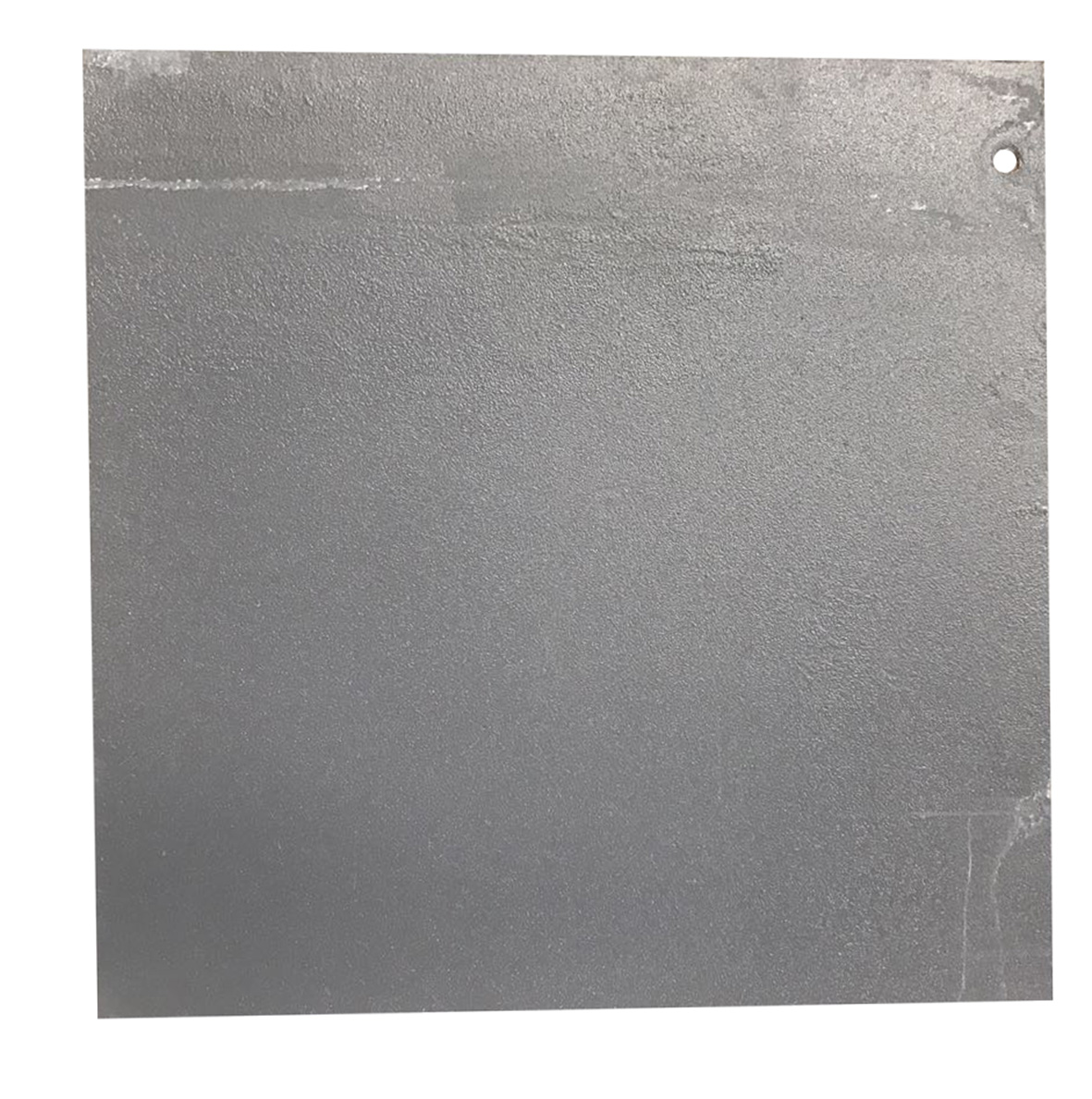

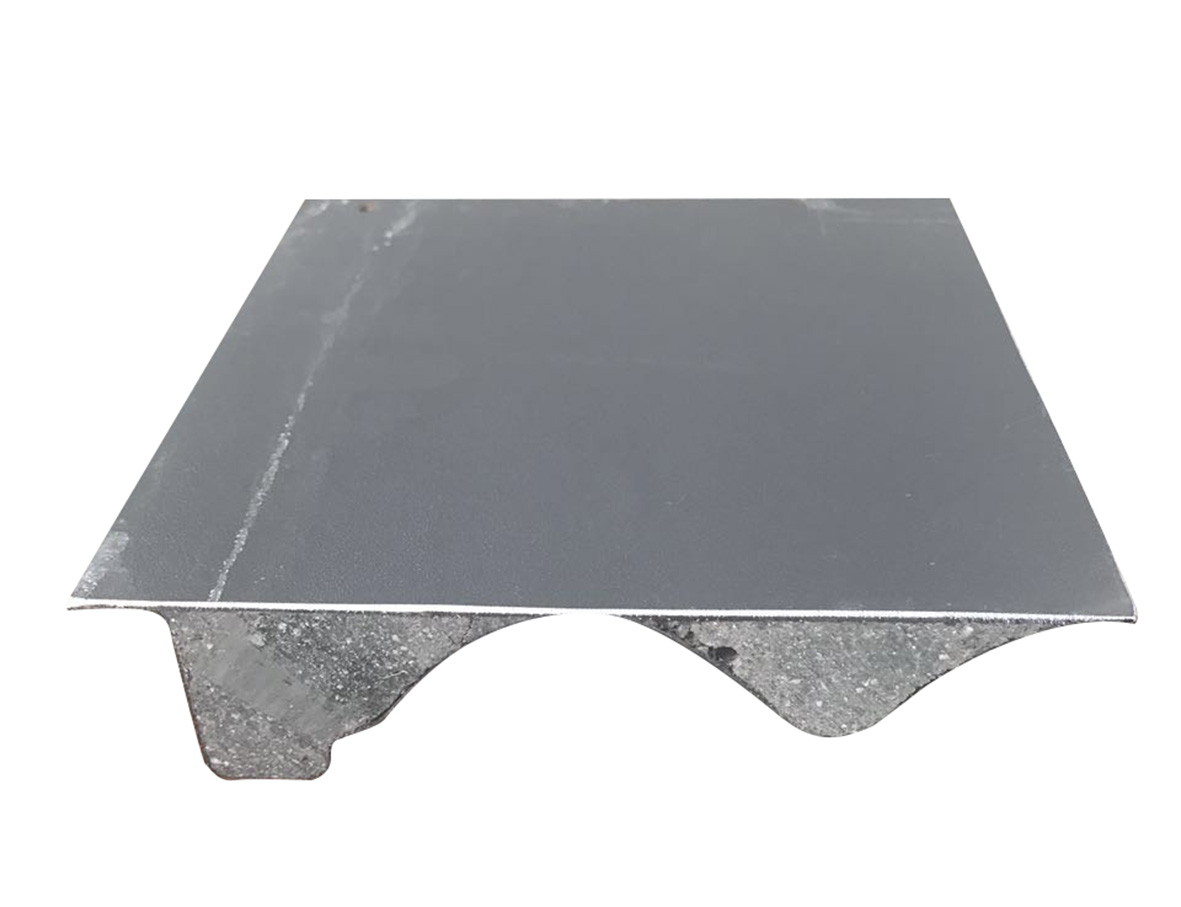

Naked steel plate
Steel plate base without overlay and side stripes。Need to put other surface materials when use。Suitable for office computer rooms。
Product parameters:
|
型號 |
Specifications |
集中載荷（撓度=2mm） |
均布載荷（N/㎡）
Uniformly distributed load
|
極限集中載荷（N）
Limit of concentrated load
|
沖擊載荷（N/㎡）
Uniformly distributed load
|
系統電阻（Ω）
System resistance
|
|||
|
國際標準 |
國家標準 |
ib |
N |
Kg |
|||||
|
FS700 |
CQ |
600*600*30 |
700 |
3050 |
318 |
9720 |
5880 |
550 |
105-10
|
|
FS800 |
Q |
600*600*35 |
800 |
3560 |
360 |
12500 |
8850 |
670 |
|
|
FS1000 |
B |
600*600*35 |
1000 |
4450 |
450 |
23000 |
13350 |
670 |
|
|
FS1250 |
Z |
600*600*35 |
1250 |
5560 |
560 |
33000 |
16680 |
670 |
|
Scope of use:
Applied in all kinds of computer rooms widely,especially in school’s computer rooms such as in multimedia classrooms,computers rooms.
